Next-Generation Firewall

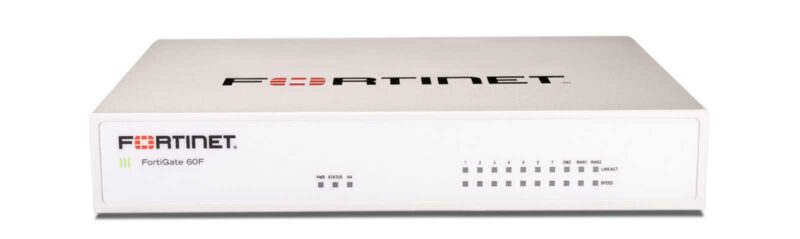

FortiGate 60F
Küçük işletmeler ve şubeler için kompakt güvenlik duvarı. Yüksek performans ve kolay yönetim.
Özellikler
- 10 Gbps Firewall Throughput
- 1.4 Gbps IPS Throughput
- SSL VPN
- Wi-Fi 6 Controller
- Zero-Touch Deployment
- SD-WAN Ready
Kimler için
Küçük ofisler ve şubeler; tek lokasyonda temel güvenlik ve VPN ihtiyacı.
Teknik özellikler
| GE RJ45 Port | 5 |
|---|---|
| DMZ Ports | 1 |
| GE RJ45 WAN Port | 2 |
| USB Ports | 1 |
| GE RJ45 Management Ports | 1 |
| IPS Throughput | 1.4 Gbps |
| NGFW Throughput | 1 Gbps |
| Threat Protection Throughput | 700 Mbps |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 10/10/6 Gbps |
| Firewall Latency (64 byte UDP packets) | 3.3 μs |
| Firewall Throughput (Packets Per Second) | 9 Mpps |
| Concurrent Sessions (TCP) | 700,000 |
| New Sessions/Second (TCP) | 35,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) | 6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 500 |
| SSL-VPN Throughput | 900 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 630 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 400 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 55,000 |
| Application Control Throughput (HTTP 64K) | 1.8 Gbps |
| CAPWAP Throughput (HTTP 64K) | 8 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 16 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 64 / 32 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active / Active , Active / Passive , Clustering |
| Height x Width x Length (inches) | 1.5 x 8.5 x 6.3 |
| Height x Width x Length (mm) | 38.5 x 216 x 160 mm |
| Weight | 2.23 lbs (1.01 kg) |
| Form Factor | Desktop |
| Power Required | 100–240V AC, 50/60 Hz , Powered by External DC Power Adapter |
| Maximum Current | 12Vdc/3A |
| Power Consumption (Average / Maximum) | 17.0 W / 18.5 W |
| Heat Dissipation | 63.1 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | C-Tick , CB , CE , FCC Part 15 Class B , UL/cUL , VCCI |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
| High Availability Port | 2 |
| Included Transceivers | 0 |
FortiGate ailesindeki yeri
Ürün kartlarındaki firewall ve IPS değerleri, küçükten büyüğe. Nihai seçim açık servislere ve trafiğe göre yapılır.
| Model | Firewall | IPS |
|---|---|---|
| FortiGate 40F | 5 Gbps | 1 Gbps |
| FortiGate 60FBu ürün | 10 Gbps | 1.4 Gbps |
| FortiGate 61F | 10 Gbps | 1.4 Gbps |
| FortiGate 100F | 20 Gbps | 2.6 Gbps |
| FortiGate 101F | 20 Gbps | 2.6 Gbps |
| FortiGate 200F | 27 Gbps | 5 Gbps |
